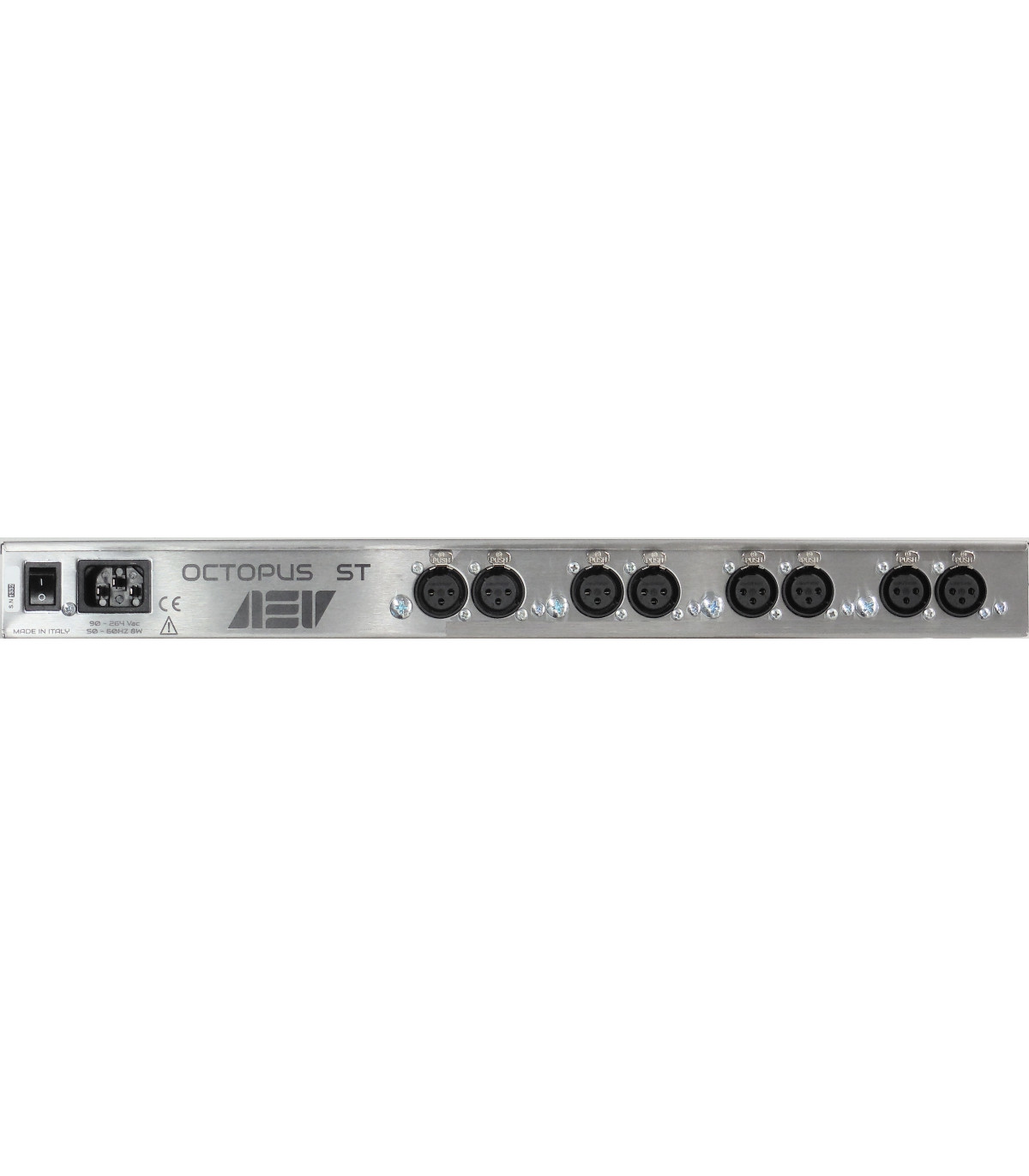

STEREO AUDIO OCTOPUS ST

Roll over image to zoom in

Status:In stock

STEREO AUDIO SWITCHER
is a high quality 1U rack-mount 19 stereo audio switcher with one Main input, four Sub inputs and four outputs.
It has one balanced Stereo Main line input, four balanced Stereo Sub inputs, four balanced Stereo outputs and one stereo Main expander output.
Use OCTOPUS ST SPLIT in the Studio to switch between the Main source and four different sub sources.
You can connect several OCTOPUS ST SPLIT units in cascading mode using each unit’s Main expander output.
The gain of the outputs can be varied with a potentiometer, and an LED displays the status of each output (Main or Sub inputs).
The AEV OCTOPUS ST SPLIT has one balanced stereo line input, five balanced stereo outputs; the XLR-3 input and outputs are electronically balanced each output is buffered individually so that a short circuit on one does not affect the others.
AEV OCTOPUS ST SPLIT can accept external commands that are normally off or normally on, fixed or pulse; the inputs are opto-isolated and configuration can be done with its panel.
AEV OCTOPUS ST SPLIT provides an optoisolated output control that retransmits the status of the internal audio switch.
The status of the optocoupler output can be programmed, it can be normally on, off, fixed or pulse.
AEV OCTOPUS ST SPLIT is equipped with a by-pass relay to guarantee the passage of the main signal in case of power failure.
